Space house / V-SHAPE
MODULAR HOUSE
V-SHAPE(73m 786sq.ft)
2
4 bedrooms
Specification:
1) External dimension: L14M*W22M*H3.3M (L45'11"*W72'2"*H10'10")

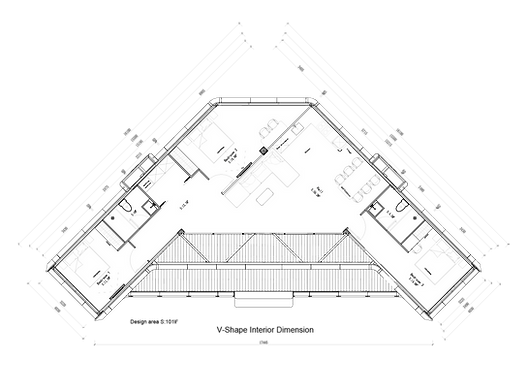

Internal dimension: L13.7M*W19.4M*H2.5M (L44'11"*W63'8"*H8'2")
2) Cabin weight: 13000kgs
3) Steel structure: square tube (thickness: 3mm)
4) Partition wall: steel sheet
5) Wall: EPS Sandwich Panel/Rock wool board panel (thickness 75mm)
6) Floor: Steel Sheet(3mm) & base Fiber Cement Board+carpets 15mm for all flooring area.
7) Roof: Steel Sheet(3mm) & EPS Sandwich thickness (50mm)
8) Windows: Aluminum alloy window frame+(6mm+12A+6mm) Double layer glazed LOW E tempered glass
9) Doors: Steel door/Glass door
10) Wind resistant: 2.4kN/㎡
11) Earthquake resistance: 7 grade
12) Fireproof: A calss /120 Mins
13) Floor load capacity: 3kN/㎡
14) Life span: 50 years
15) Unit of loading into a 40 feet HQ container: 1.2 sets
EB Capsemble Space House
Capsemble is more than just a housing option—it’s a fully customizable modular series designed to meet all your development needs!
CUSTOMIZE TO MATCH YOUR STYLE
The V-shape version of RGB modular capsule space house, we customized it for your resort or estate build needs.
4 BEDROOMS
EXTERNAL DIMENSION: L14xW22xH3.3M
INTERNAL DIMENSION: L13.7xW19.4xH2.5M
HOME COMBO YOUR DREAM HOME
Perfect for those who want a personal home, a backyard guest house or a space built your way.
Easy installation
Innovative capsule space house technology that allows quick construction in just a few days.
Stylish Appeal
Customizable exterior colors and branding, including 3D family logos or signatures.
Space-Saving Design
All models feature larger master bedrooms and guest/children’s rooms, while still providing ample space in the living and dining areas.
Modern Lighting Effects
External RGB lighting creates a significant eye-catching design, making the house stand out and look impressive.
Maximized Shipping Efficiency
House models of 2-3 bedrooms can be shipped in a 20-foot container, while 4-bedroom models can fit into a 40HQ container.
Safety and Quality
The house structure has passed safety tests and is designed to withstand earthquakes, typhoons, and fire resistance, ensuring a satisfactory living environment.
