Space house / I-SHAPE PLUS
MODULAR HOUSE
I-SHAPE PLUS(36m 388sq.ft)
2
With balcony, 1 bedroom
Specification:
1) External dimension: L11.5M*W3.9M*H3.3M (L37'9"*W12'10"*H10'10")
Internal dimension: L9M*W3.5M*H2.5M (L29'6"*W11'6"*H8'2")
2) Cabin weight: 5500kgs
3) Steel structure: square tube (thickness: 3mm)
4) Partition wall: steel sheet
5) Wall: EPS Sandwich Panel/Rock wool board panel (thickness: 75mm)
6) Floor: Steel Sheet(3mm) & base Fiber Cement Board 18mm+carpets 15mm for all flooring area.
7) Roof: Steel Sheet(3mm) & EPS Sandwich thickness (50mm)
8) Windows: Aluminum alloy window frame+(6mm+12A+6mm) Double layer glazed LOW E tempered glass
9) Doors: Steel door/Glass door
10) Wind resistant: 0.6kN/㎡
11) Earthquake resistance: 7 grade
12) Fireproof: A calss /120 Mins
13) Floor load capacity: 3kN/㎡
14) Life span: 50 years
15) Unit of loading into a 40 feet HQ container: 2.8 sets
Each space capsule is an independent living unit
The model I-Shape plus, a one-bedroom unit in 32 sqm, specialises in camping, Airbnb, and resort building projects.
CUSTOMIZE TO MATCH YOUR STYLE
The I-shape plus version of RGB modular capsule space house, we customized it for your resort or estate build needs.
1 BEDROOMS
EXTERNAL DIMENSION: L11.5xW3.9xH3.3M
INTERNAL DIMENSION: L9xW3.5xH2.5M
HOME COMBO YOUR DREAM HOME
Perfect for those who want a personal home, a backyard guest house or a space built your way.
Easy installation
Innovative capsule space house technology that allows quick construction in just a few days.
Stylish Appeal
Customizable exterior colors and branding, including 3D family logos or signatures.
Space-Saving Design
All models feature larger master bedrooms and guest/children’s rooms, while still providing ample space in the living and dining areas.

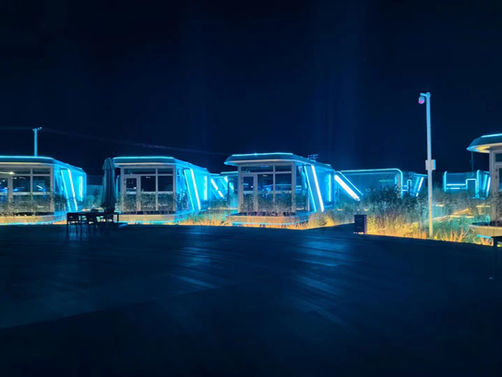

Modern Lighting Effects
External RGB lighting creates a significant eye-catching design, making the house stand out and look impressive.
Maximized Shipping Efficiency
House models of 2-3 bedrooms can be shipped in a 20-foot container, while 4-bedroom models can fit into a 40HQ container.
Safety and Quality
The house structure has passed safety tests and is designed to withstand earthquakes, typhoons, and fire resistance, ensuring a satisfactory living environment.
