Space house / KIOSK
MODULAR HOUSE
KIOSK(54m 581sq.ft)
2

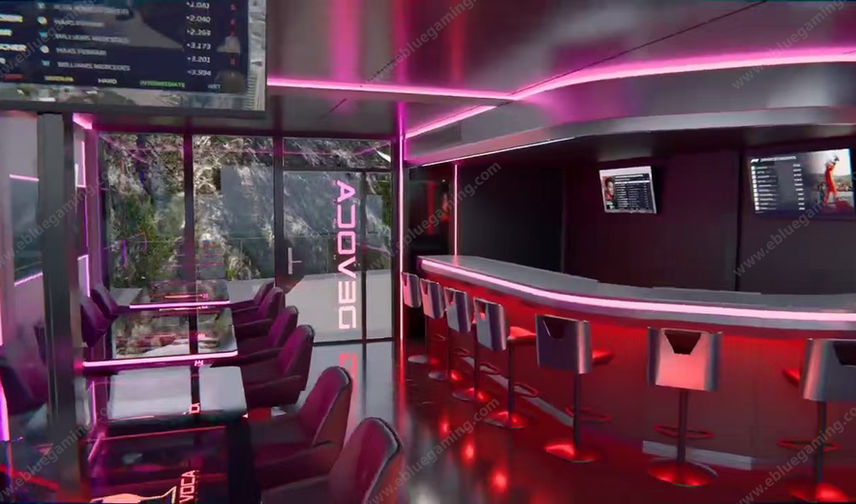

food/cafe station
Specification:
1) External dimension: L10M*W6.5M*H3.3M (L32'10"*W21'4"*H10'10")
Internal dimension: L9M*W6M*H2.5M (L29'6"*W19'8"*H8'2")
Indoor area: 36㎡ (388sq.ft) Terrace area: 18㎡ (194sq.ft)
2) Cabin weight: 8200kgs
3) Steel structure: square tube (thickness: 3mm)
4) Partition wall: steel sheet
5) Wall: EPS Sandwich Panel/Rock wool board panel (thickness 75mm)
6) Floor: Steel Sheet(3mm) & base Fiber Cement Board+carpets 15mm for all flooring area.
7) Roof: Steel Sheet(3mm) & EPS Sandwich thickness (50mm)
8) Windows: Aluminum alloy window frame+(6mm+12A+6mm) Double layer glazed LOW E tempered glass
9) Doors: Steel door/Glass door
10) Wind resistant: 0.6kN/㎡
11) Earthquake resistance: 7 grade
12) Fireproof: A calss /120 Mins
13) Floor load capacity: 3kN/㎡
14) Life span: 50 years
15) Unit of loading into a 40 feet HQ container: 1.7 sets
Easy installation
Innovative capsule space house technology that allows quick construction in just a few days.
Stylish Appeal
Customizable exterior colors and branding, including 3D family logos or signatures.
Space-Saving Design
All models feature larger master bedrooms and guest/children’s rooms, while still providing ample space in the living and dining areas.
Modern Lighting Effects
External RGB lighting creates a significant eye-catching design, making the house stand out and look impressive.
Maximized Shipping Efficiency
House models of 2-3 bedrooms can be shipped in a 20-foot container, while 4-bedroom models can fit into a 40HQ container.
Safety and Quality
The house structure has passed safety tests and is designed to withstand earthquakes, typhoons, and fire resistance, ensuring a satisfactory living environment.
